Are you familiar with angle steel and its many uses in construction? This versatile material plays a crucial role in various industries.
Understanding steel angle dimensions and steel angle sizes is key to choosing the right material for your projects. Whether you're working with stainless steel angle iron or galvanized steel angle iron, selecting the right type can make all the difference.
In this post, we’ll discuss the applications, types, and benefits of angle steel, including how to use steel angle brackets and stainless steel angle for structural support. We’ll also dive into the specifics of steel angle weight and steel angle dimensions to help you make informed choices for your next project.
Angle steel is a versatile L-shaped steel profile used in various structural applications. It is designed to provide support and stability in buildings, bridges, and other large structures. The L-shape, formed by two perpendicular legs, gives it the strength to handle heavy loads and resist deformation.
Steel angle is a crucial material in industries like construction and manufacturing due to its high strength and adaptability. Whether you're building a home or constructing a bridge, steel angle iron ensures long-term durability and structural integrity.
Different materials are used to make angle steel, depending on the project's needs:
● Carbon Steel: Known for its high strength and cost-effectiveness, it is commonly used for general structural applications.
● Stainless Steel Angle: Offers excellent resistance to corrosion, making it ideal for environments exposed to moisture or chemicals.
● Galvanized Steel Angle Iron: Coated with zinc to prevent rust, it is perfect for outdoor applications and harsh weather conditions.
Each material provides different advantages based on factors like strength, durability, and corrosion resistance.
Here's a quick comparison of these materials:
Material | Strength | Corrosion Resistance | Common Applications |
Carbon Steel | High | Low | General construction |
Stainless Steel | Very High | Excellent | Marine, chemical plants |
Galvanized Steel | High | Good | Outdoor, industrial use |
Angle steel comes in various shapes and sizes, each suited for specific applications. It plays a key role in construction, manufacturing, and industrial projects, offering both strength and flexibility.
Equal leg angle steel has two legs of the same length, forming a 90-degree angle. It is widely used in situations where equal strength is required along both sides of the angle. On the other hand, unequal leg angle steel has two legs of different lengths, allowing for more flexibility in design.
● Equal Leg Angle Steel: Both legs have the same length and thickness. It's perfect for framing and general construction, where symmetry and uniform support are essential.
● Unequal Leg Angle Steel: One leg is longer or thicker than the other. It is often used in more complex designs where asymmetry helps distribute the load more efficiently.
● Equal Leg Angle Steel is ideal for straightforward applications like structural frames, shelving, and bracing.
● Unequal Leg Angle Steel works better for applications requiring extra strength in one direction, such as in bridges or steel structures subject to heavy loads.

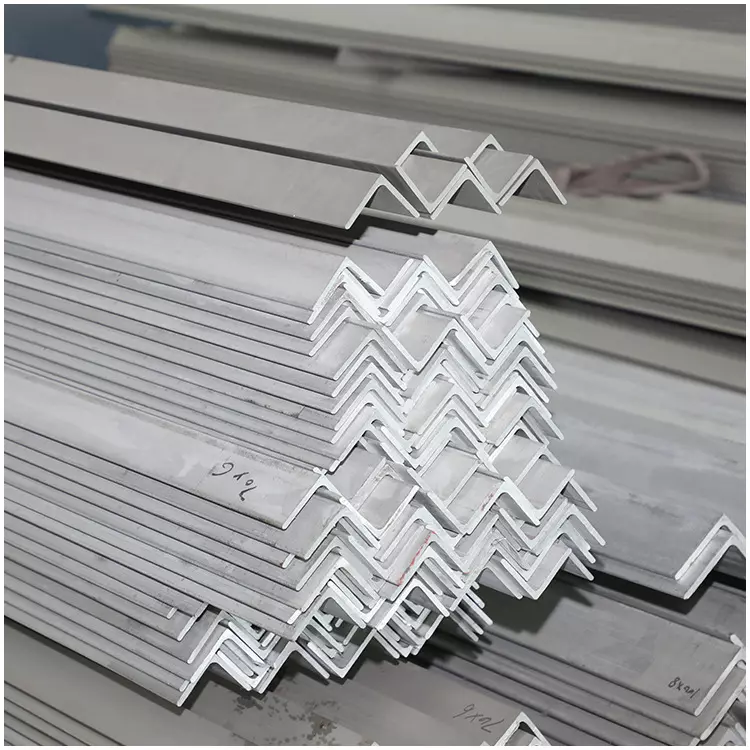

Stainless steel angle is highly resistant to corrosion, making it a preferred choice in environments exposed to moisture or chemicals. Whether in marine environments or chemical plants, stainless steel angles offer long-lasting durability and minimal maintenance.
Stainless steel angle is often used in coastal areas, chemical processing plants, or any environment where metal might corrode quickly. It’s perfect for industries that demand strength and longevity, even in harsh conditions.
Galvanized steel angle iron is coated with a layer of zinc to protect it from rust and corrosion. This coating is especially beneficial in outdoor or harsh conditions, where weathering could quickly degrade untreated steel.
● Galvanized steel angle iron is the go-to material for construction projects exposed to the elements, such as outdoor frameworks, fences, and utility structures.
● Its corrosion resistance ensures longevity and reduces the need for frequent maintenance or replacement.
Here's a quick comparison of the types:
Type | Features | Best Used For |
Equal Leg Angle Steel | Symmetrical, same leg length | Structural framing, shelving |
Unequal Leg Angle Steel | Asymmetrical, different leg lengths | Heavy load distribution, complex designs |
Stainless Steel Angle | Corrosion-resistant, durable | Chemical plants, marine environments |
Galvanized Steel Angle Iron | Zinc coating, rust-resistant | Outdoor, utility structures, fencing |
Choosing the right steel angle size is crucial for ensuring structural integrity and functionality. The dimensions of steel angles vary based on the type of application, and selecting the right size can significantly impact the performance of your project.
A steel angle dimensions chart is a useful reference that helps you understand the sizes and thicknesses available for steel angles. This chart typically lists the leg length, thickness, and overall dimensions of the angle. It’s essential for choosing the right steel angle sizes for various structural and architectural projects.
Here are some examples of standard steel angle sizes:
● 25x25x3mm – A small angle, ideal for light framing and support.
● 50x50x6mm – A medium-sized angle commonly used in building frames and shelving.
● 100x100x8mm – A large steel angle, used for heavy-duty structural applications.
These sizes reflect the leg length and thickness of the angle, and choosing the right one depends on the load requirements and design specifications of your project.
Accurate steel angle dimensions ensure proper fit and function in construction projects. Incorrectly sized angles can lead to structural weaknesses, misalignment, or even failure. That’s why referring to a steel angle dimensions chart is crucial when selecting the right material for your project.
Here’s a detailed steel angle dimensions chart to guide you in selecting the correct angle for your project:
Steel Angle Size (mm) | Leg Length (L) | Thickness (T) | Common Applications |
25x25x3mm | 25 | 3 | Light framing, small supports |
50x50x6mm | 50 | 6 | Building frames, shelving |
100x100x8mm | 100 | 8 | Heavy-duty structures, bridges |
This chart provides a quick reference to help you select the right steel angle size based on your needs. Whether you’re working on light construction or heavy-duty projects, understanding the right dimensions will ensure the stability and longevity of your structure.
By using these guides and resources, you can confidently choose the steel angle dimensions required for your project.
Angle steel is widely used across various industries, providing essential support and stability in construction and civil engineering. Its versatility makes it a key material for everything from buildings to bridges.
Angle steel is crucial in building frames due to its strength and ability to withstand heavy loads. It’s commonly used for structural reinforcement, offering stability to buildings and other structures. Steel angle iron is often chosen for its durability, especially in multi-story buildings or in areas subject to high stress.
● Steel Angle Iron supports vertical and horizontal loads.
● Angle steel ensures the overall integrity and safety of the building frame.
● Ideal for providing structural reinforcement in construction projects.
Bridges require materials with high durability and resistance to environmental stress. Angle steel is often used to reinforce bridge structures due to its ability to handle extreme conditions. It plays a vital role in distributing weight evenly, preventing structural failure.
● Angle steel is used in the framework of bridges to provide stability.
● It helps resist heavy loads and environmental stresses, extending the life of the bridge.
● Stainless steel angle is particularly useful in areas exposed to moisture or chemicals.
Steel angle brackets are versatile components used in a wide range of applications. They provide additional support in framing, shelving, and other structures that need reinforcement. These brackets are used across industries for mounting equipment, stabilizing components, and reinforcing joints.
● Steel angle brackets are easy to install and provide strong support.
● Commonly used in both residential and commercial projects.
● Helps mount items securely, such as shelves, doors, or machinery.
By understanding these key applications, it becomes clear how integral angle steel is in creating durable, long-lasting structures. Whether it's used in construction, bridges, or as steel angle brackets, it plays a significant role in maintaining the stability and strength of various infrastructure projects.
Angle steel is a highly reliable material used in various industries for its strength, versatility, and cost-effectiveness. It's ideal for structural projects where high durability and stability are needed.
Angle steel offers exceptional mechanical strength, making it suitable for applications where structural reinforcement is essential. It can withstand significant loads and resist bending and deformation, even under heavy pressure. This makes it ideal for construction projects where structural integrity is a top priority.
● Steel angle is particularly strong and reliable.
● Perfect for building frameworks, industrial machinery, and reinforcement.
One of the key benefits of angle steel is its cost-effectiveness. It’s relatively affordable compared to other materials like I-beams or structural plates. Despite its lower cost, it provides reliable support, making it an ideal choice for many projects without compromising strength or safety.
● Steel angle iron is a budget-friendly alternative for structural support.
● Ideal for both large and small-scale construction projects.
Stainless steel angle and galvanized steel angle iron are known for their corrosion resistance. Stainless steel angle is particularly effective in environments exposed to moisture, chemicals, or extreme weather conditions. Meanwhile, galvanized steel angle iron is coated with zinc, providing an extra layer of protection against rust and corrosion, making it perfect for outdoor and industrial use.
● Stainless steel angle resists rust, ensuring long-lasting performance in harsh environments.
● Galvanized steel angle iron offers corrosion protection for outdoor and heavy-duty applications.
Angle steel is designed to last, even in the most demanding environments. Its durability ensures long-term performance, whether it’s used in industrial machinery or residential projects. When properly maintained, steel angle can outlast other materials, reducing the need for frequent repairs or replacements.
● Angle steel ensures lasting strength and stability.
● Suitable for both industrial and residential applications.
One of the significant advantages of angle steel is its ease of fabrication and installation. It can be easily cut, welded, and installed, which reduces labor costs and installation time. Whether you’re working with steel angle iron or stainless steel angle, it’s a material that simplifies the construction process.
● Steel angle is easy to cut, weld, and shape.
● Reduces installation time and effort, making it ideal for large projects.
By utilizing angle steel, you can ensure your project benefits from high strength, low maintenance, and cost-effective solutions. Whether it’s the stainless steel angle for corrosion resistance or the ease of installation with steel angle iron, it’s a versatile material suited for various applications.
When selecting angle steel, it’s important to choose the right material based on your project’s needs. Stainless steel angle and galvanized steel angle iron both offer excellent durability, but they have different properties that make them suitable for distinct applications.
Stainless steel angle is renowned for its superior corrosion resistance. It’s made with a mix of steel and chromium, which forms a protective layer on the surface. This layer prevents rust, even in environments exposed to moisture and chemicals.
On the other hand, galvanized steel angle iron is coated with zinc to protect it from corrosion. While it is highly resistant to rust, its protection can wear off over time, especially in environments where the coating may be scratched or damaged.
● Stainless steel angle provides long-lasting protection in extreme environments.
● Galvanized steel angle iron offers adequate corrosion resistance but may require re-coating in some cases.
Stainless steel angle tends to be more expensive than galvanized steel angle iron. However, its durability and resistance to rust make it the better option for long-term investments, especially in high-humidity or chemical exposure areas.
● Stainless steel angle is ideal for marine applications, chemical plants, and outdoor environments.
● Galvanized steel angle iron is often used for construction, outdoor frames, and projects where cost efficiency is a priority.
● Use stainless steel angle for projects in highly corrosive environments, such as coastal areas, or where high aesthetic standards are required.
● Choose galvanized steel angle iron for budget-friendly applications where corrosion protection is necessary but less critical.
Each material performs differently depending on the environment. Stainless steel angle thrives in harsh conditions, including exposure to chemicals, saltwater, and high humidity. It’s the best choice for environments where other metals might degrade quickly.
Galvanized steel angle iron, while resistant to rust, is more suitable for moderately harsh conditions. The zinc coating provides protection but can degrade if exposed to saltwater or acidic environments over time.
● Stainless steel angle is perfect for environments where exposure to corrosive substances is inevitable.
● Galvanized steel angle iron works well in standard outdoor conditions but may not withstand severe exposure.
Working with angle steel requires the right tools and techniques to ensure precise results. Whether you're cutting, welding, or joining steel angle iron, using proper methods will lead to a more efficient and durable construction process.
Cutting steel angle with an angle grinder is a straightforward process, but it’s important to follow the correct steps to achieve clean, accurate cuts.
1. Prepare your workspace: Ensure you have a clean, flat surface and proper safety equipment, including goggles, gloves, and ear protection.
2. Mark the cut line: Use a measuring tape and pencil to mark the cutting line on the steel angle iron.
3. Secure the angle steel: Clamp the steel angle firmly to prevent it from moving during cutting.
4. Attach the cutting disc: Install a metal cutting disc on your angle grinder.
5. Cut along the marked line: Hold the grinder firmly and cut slowly along the line, letting the tool do the work.
6. Smooth the edges: After cutting, use a grinder or file to smooth any rough edges.
By following these steps, you can ensure a clean cut when using an angle grinder on steel angle iron.
Welding angle steel is essential for creating strong and durable connections. Whether you're joining two pieces of steel angle iron or attaching it to another material, welding provides a secure bond that will last.
1. Select the right welding rod: Use a welding rod compatible with the type of steel angle iron you're working with.
2. Prepare the surfaces: Clean the surfaces of the steel angle to remove any dirt, rust, or oil. This ensures a strong weld.
3. Align the pieces: Position the steel angle iron pieces where you want to join them, using clamps if necessary.
4. Begin welding: Use a MIG or TIG welder to create a continuous bead along the joint, ensuring full penetration.
5. Allow cooling: Let the welded area cool completely before handling.
Proper welding ensures the steel angle maintains its structural integrity and provides a long-lasting connection.
When working with steel angle iron, a few common mistakes can lead to wasted materials or poor results. Avoiding these errors will save you time and effort.
● Incorrect measurements: Always double-check your measurements before cutting. A small mistake can lead to wasted materials.
● Improper clamping: If your steel angle iron isn't secured properly, it can shift during cutting or welding, resulting in misalignment.
● Poor welding technique: Ensure proper heat settings and speed when welding to avoid weak joints.
● Not using the right tool: Using the wrong type of saw or grinder can damage the steel angle or cause inaccurate cuts.
By paying attention to these tips, you can avoid mistakes and achieve better results in your steel angle projects.
When working with angle steel, it’s important to consider the weight of the material. Understanding steel angle weight helps ensure that your project will be structurally sound while also factoring in logistics and installation.
To calculate steel angle weight, you need to know the material’s dimensions and its density. The basic formula involves multiplying the cross-sectional area of the steel angle by its density and length.
Here’s a simple way to estimate the weight per meter:
1. Measure the dimensions: Determine the leg length and thickness of the steel angle.
2. Calculate the cross-sectional area: Multiply the leg length by the thickness.
3. Multiply by density: Use the density of the material (typically 7.85 g/cm³ for steel) to get the weight.
For example, if the steel angle is 50mm x 50mm x 6mm, you can calculate the weight per meter as follows:
● Area: 50 x 6 = 300 mm²
● Weight: 300 mm² x 7.85 g/cm³ = approximately 2.36 kg/m.
This formula provides an approximate weight per meter or foot, allowing you to plan your project’s logistics more effectively.
Steel angle dimensions directly affect both the weight and strength of the material. A larger leg length or thicker steel will increase the steel angle weight, making it better suited for supporting higher loads.
● Wider legs increase load-bearing capacity.
● Thicker steel improves resistance to bending and deformation, adding strength.
Choosing the right steel angle dimensions is crucial based on the structural requirements of your project. For example, heavier steel angles are necessary for large industrial structures, while lighter angles may be sufficient for smaller projects.
The weight of steel angle iron can complicate transportation and installation, especially for larger projects. Heavier angles require stronger equipment for moving and lifting, as well as more workers for installation.
● Heavy steel angles may need cranes or forklifts for handling.
● Transportation costs increase with the weight, as more robust vehicles are required for heavy loads.
● Consider the steel angle weight when planning your project timeline to avoid delays in delivery or installation.
Choosing the right steel angle for your project is crucial for ensuring structural stability and durability. The steel angle dimensions play a key role in the design, strength, and overall success of your construction or manufacturing project.
The steel angle sizes you choose will directly affect the strength and integrity of your structure. Larger steel angles with greater thickness offer higher load-bearing capacity, making them ideal for heavy-duty applications like bridges and industrial machinery. On the other hand, smaller steel angles are perfect for lightweight framing, shelving, and decorative purposes.
● Steel angle dimensions should match the specific load requirements and environmental factors.
● Steel angle sizes influence the structural reinforcement, ensuring safety and long-term performance.
The role of steel angle sizes in structural integrity cannot be overstated. Using an appropriately sized steel angle ensures that your design can withstand the stresses it will face during its lifespan.
Here’s a steel angle sizes chart to help guide your choice:
Steel Angle Size (mm) | Leg Length (L) | Thickness (T) | Approximate Weight (kg/m) | Common Uses |
25x25x3mm | 25 | 3 | 1.5 | Light framing, shelving |
50x50x6mm | 50 | 6 | 4.0 | Building frames, supports |
100x100x8mm | 100 | 8 | 9.5 | Heavy-duty structures, bridges |
Use this chart to find the right steel angle size for your project. The steel angle dimensions depend on the type of load it will carry and the overall design needs of your structure.
By referring to the steel angle sizes chart, you can make informed decisions about which size and thickness will best suit your project’s requirements.
Angle steel offers key benefits like strength, durability, and versatility in construction. Choosing the right steel angle size and material, such as stainless steel angle or steel angle iron, is crucial for each project’s success. Whether you're working on a professional or DIY project, understanding steel angle dimensions ensures optimal performance and stability. Proper selection leads to lasting, safe structures.
